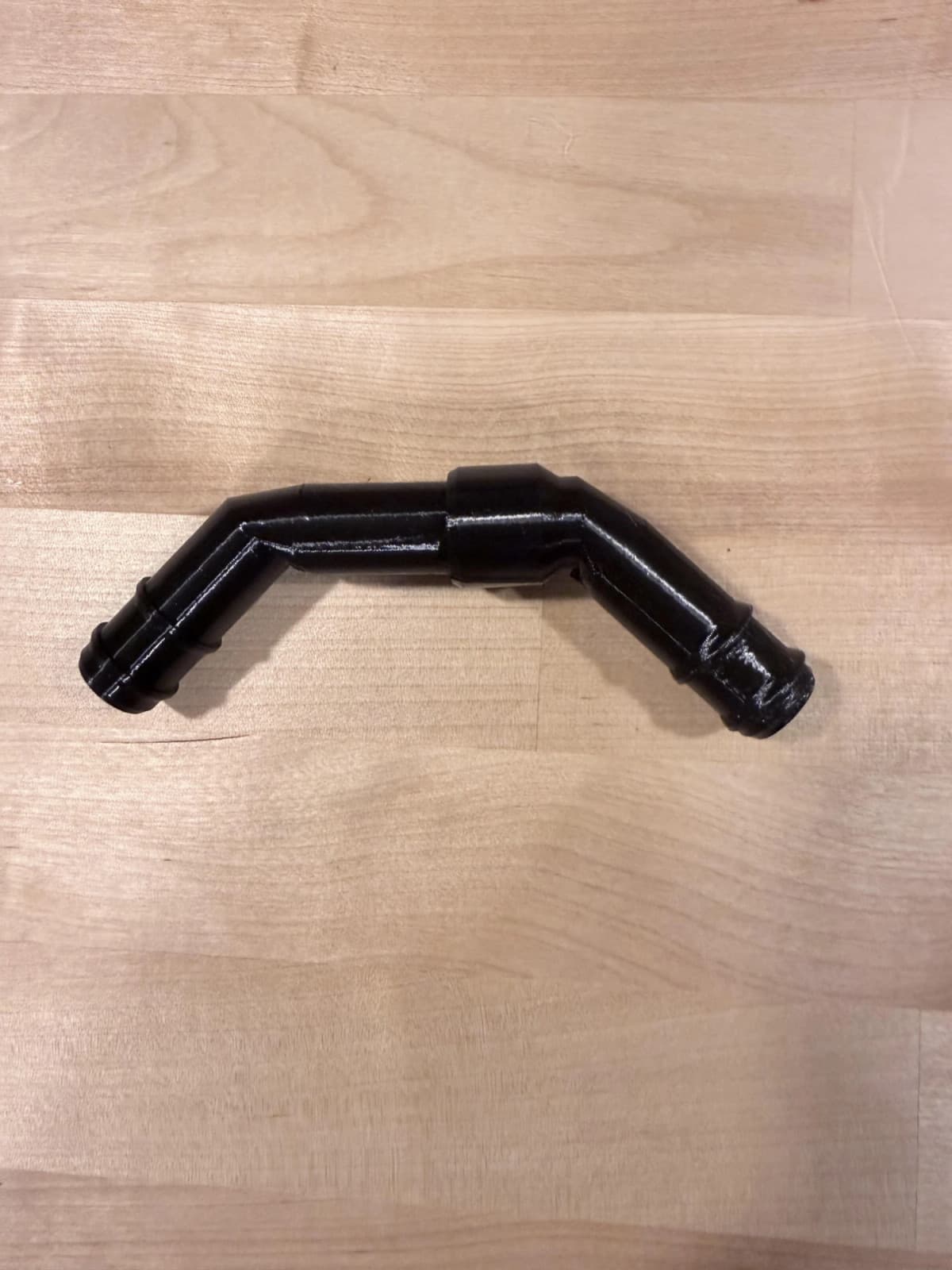

Product image of the Black part.

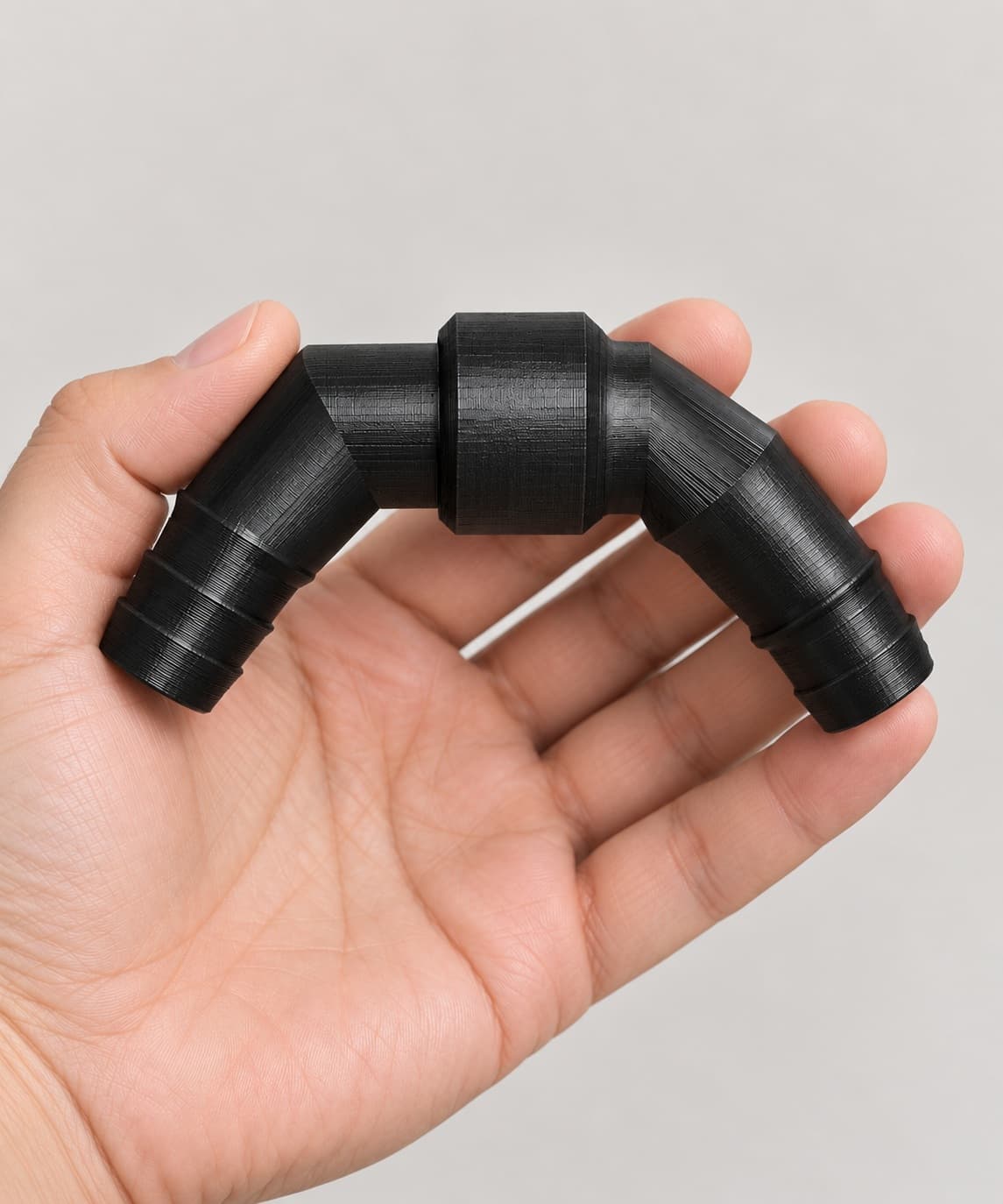

Eheim 16/22mm to 5/8 Inch Vinyl Barb Elbow Adapter, 90 Degree
Works with API / Rena Filstar XP-S / XP-M / XP-L / XP-XL. Also Aqua One Aquis 1000 / 1200. Also Aquael Ultramax 1000 / 1500. Plus 14 more models from 10 other makers, listed below.

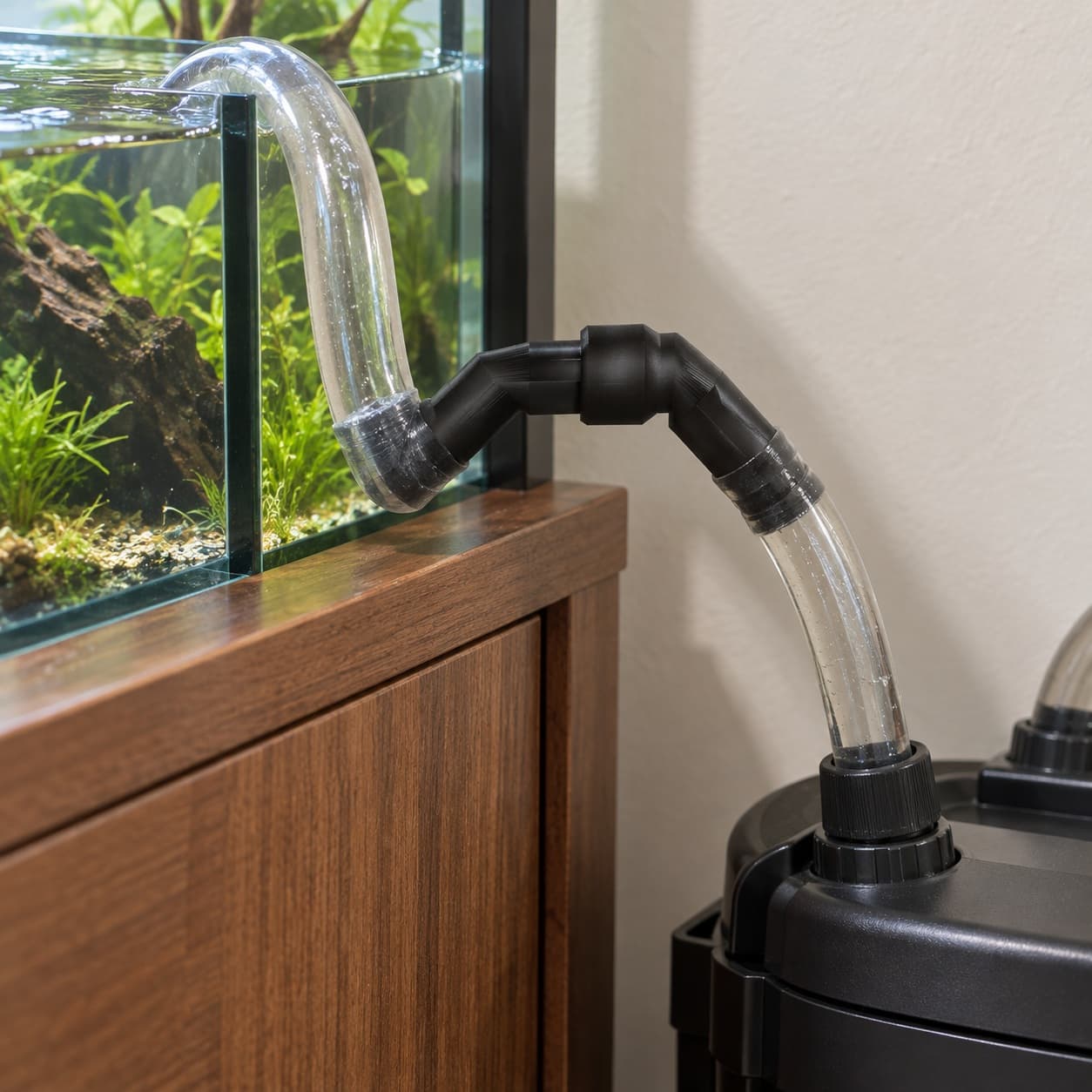

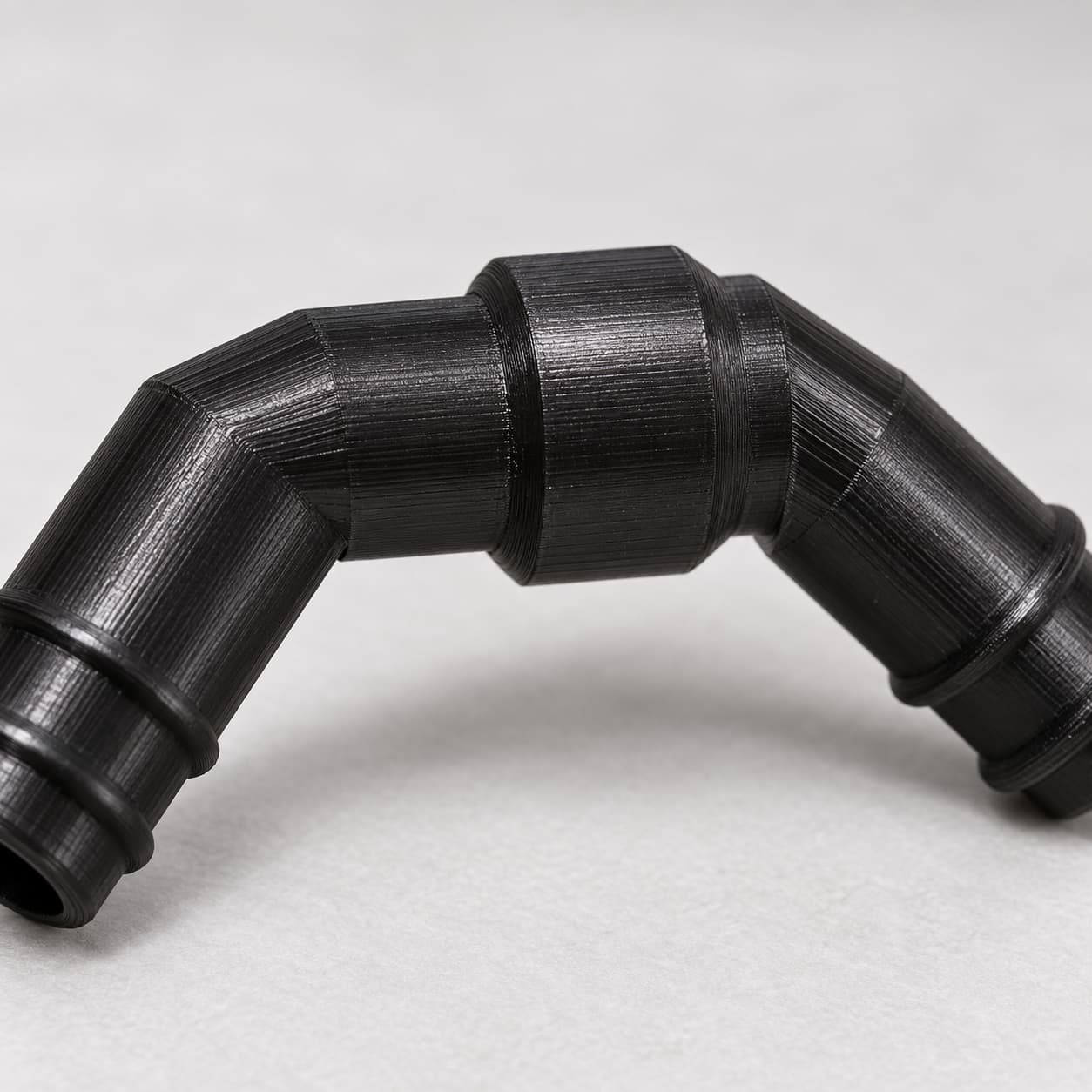

This is a 90 degree elbow adapter that connects 16/22mm hose (Eheim Classic 600/1500XL, JBL e1502) to 5/8 inch clear vinyl tubing. It ships as one finished part. We print the two halves and glue the halves together before it ships. It can reach around a corner a straight or 45 degree adapter cannot. We print in PETG. Rinse before use.
- For flexible tubing
Ships as 1 finished part.
- Ships in 3 to 5 business days
- $7.95 flat US shipping
- Free 30 day returns
- Made in the USA
Wrong fit? Email us. We reprint it or refund you.
Made in the USA
Printed to order
Custom sized
Compatibility
Works with
Know your connection size?
Pick your connection size and we will tell you whether this is the part. Know your filter model instead? Start there.
Need help identifying your setup? Send us a photo.
Snap the label on your gear and the spot the part goes. A person looks at every photo and emails you back.
Send a photoFill a rack or a fish room? Buy more and pay less per piece.
Need more than 25, or the same order every month? Ask for a bulk price.
Specifications and install steps
Specifications
- Compatible equipment
- API / Rena Filstar XP-S / XP-M / XP-L / XP-XL, Aqua One Aquis 1000 / 1200, Aquael Ultramax 1000 / 1500, Aquatop CF-300 / CF-400, Cobalt Aquatics EXT canister, Dennerle Scaper's Flow, Eheim Classic 600 (2217), Eheim Classic 1500XL (2262), Eheim eXperience 350, Eheim professionel 4+ 250 / 350 / 600, Fzone Stainless steel canisters, JBL CristalProfi e1501, JBL e1502, Marineland Magniflow 160 / 220, Oase BioMaster 250 / 350 / 600 / 850, Penn Plax Cascade 700 / 1000 / 1200 / 1500, SunSun HW-302 / HW-303B / HW-402B / HW-403B
- Ends
- Inlet end, barb, for flexible tubing. Outlet end, barb, for flexible tubing
- Dimensions
- 16mm ID / 22mm OD. 15.88mm ID / 22.23mm OD
- Material
- PETG
- Colors
- Black, White, Olive Green
- Pieces included
- 1 finished part
- Care
- Pull the hose off and rinse the elbow in clean water when you clean the rest of your hose line.
How this part connects
This shows what each end is sized for.
| End | Size | Measurement |
|---|---|---|
| inlet | 16/22mm hose (Eheim Classic 600/1500XL, JBL e1502) | 16mm ID / 22mm OD |
| outlet | 5/8 inch clear vinyl tubing | 15.88mm ID / 22.23mm OD |
Want us to point at the right row? Send us a photo of your setup and a person will look at it.
Need a different size?
Pick your sizes in the Custom Builder and we will print it.
Build a custom partHow to put this elbow adapter on
- What is in the box
- 1 finished part. We print the two halves of the bend and glue the halves together before it ships. There is nothing to put together.
- How it goes on
- Look at both ends. Each end is cut for the size named in the fitment table on this page.
- Push each end on by hand until it seats.
- Fully seat the hose on the barb. Use an appropriately sized hose clamp where your installation calls for one.
- Check it the first time
- Rinse the part in clean water before it goes in your tank.
- After startup, check every hose connection for leaks.
- Cleaning
- Pull the hose off and rinse the elbow in clean water when you clean the rest of your hose line.
- Taking it off
- Twist each hose end and pull it off by hand.
Safety
A note on safety
We print every part in PETG. It is the material aquarium keepers have used submerged for years. Rinse each part in clean water before you add it to your tank.
Common questions
Does the elbow adapter come as one piece?
Yes. It ships as one finished part. We print the two halves and glue the halves together before it ships.
Is the elbow adapter tested before it ships?
We print the two halves, fit them, and glue the halves together before it ships. Check your hose connections for leaks after startup.
What if I need a straight or 45 degree connection instead?
The elbow adapter is built for a full 90 degree turn. For a straight run or a 45 degree bend, see our adapters instead.
Does the elbow adapter fit the same hose sizes as the straight adapters?
Each elbow size is cut to a hose or pipe size, the same way our straight adapters are. Check the size on the product page against your own hose.
